Sport Trainer Mystery Shooting Gallery
TechnofixLong base supporting target and pistol
- Model
- 318
- Type
- Games
- Topic
- Games
- Country of manufacture
- Germany
- Mechanism
- Other
- Movement
- The pistol can move verticaly in any direction to be aligned w/ target; upon pressing the trigger, we see a hole punched in the target; paper targets can be exchanged
- Materials
- Tin & plastic
- Dimensions (LxWxH cm)
- 80x14x22.5
- Condition
- Very Good
- Manufactured
- 1965 – 1970
- Box
- Good
Research notes
There is a variant with a clockwork "time control" rotating knob
Notes
we have several spare targets
Featured in
- "Technofix" History and Products — p. 93
How it works

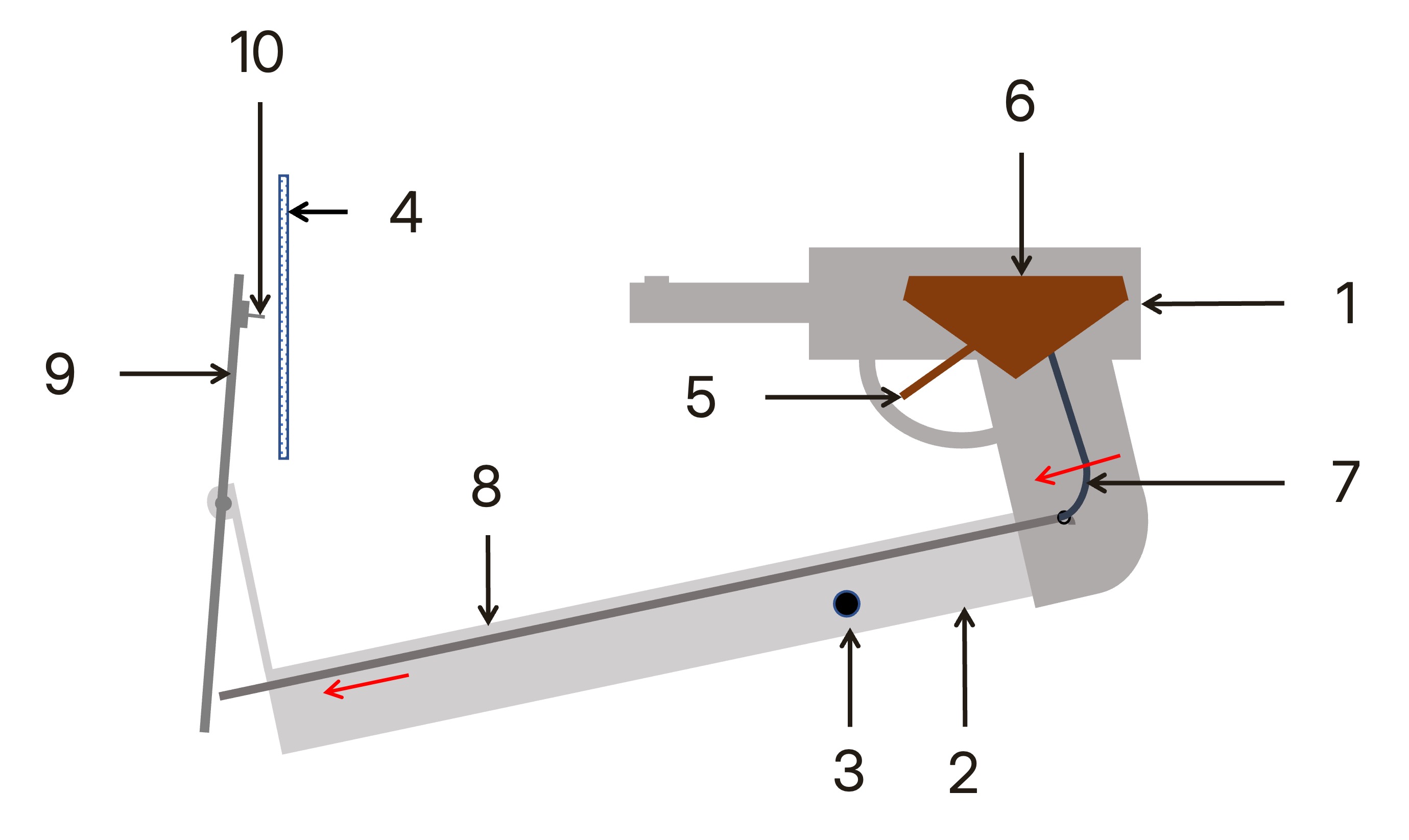

The pistol (1) is fixed to a bar (2), both being loosely supported by shaft (3), so that they can move freely in a vertical plan. The user aims at target (4) and shoots by pressing trigger (5). The spring/lock mechanism (6) quickly rotates bar (7) forward, and rod (8), which is connnected to it, shifts to the left. In turn, rod (8) hits bar (9), causing needle (10) to punch the target from behind.
